Home >> Genesis >> 2020 >> G70 2.0T, RWD, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System - 2.0L >> Components And Components Location >> Components

Components And Components Location: Components

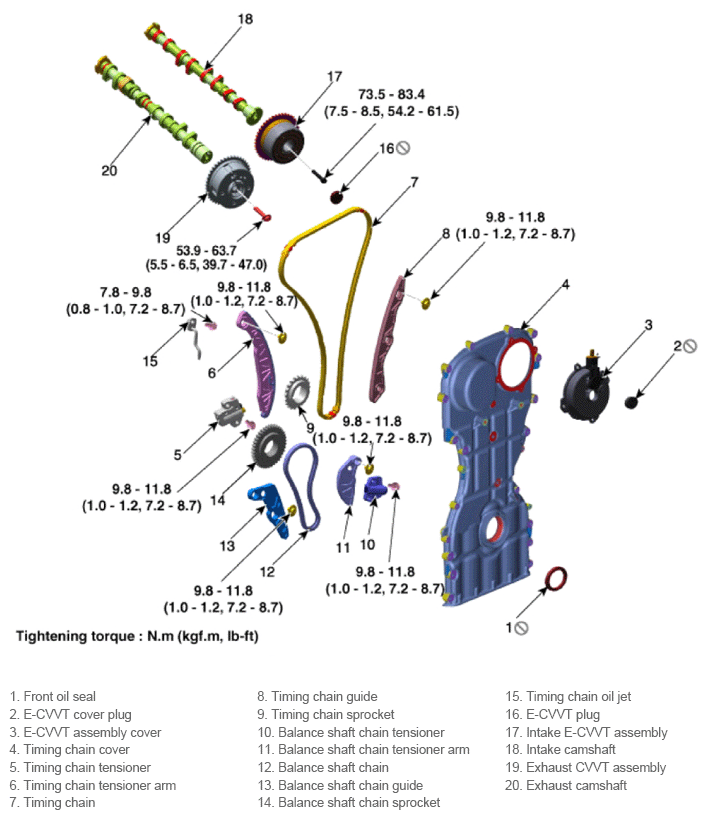

Fig 1: Timing System Components Location With Torque Specification

G13538691

Courtesy of HYUNDAI MOTOR AMERICA
