Home >> Genesis >> 2020 >> G70 2.0T, RWD, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.0L >> Balance Shaft Module >> Components & Components Location >> Components

Components & Components Location: Components

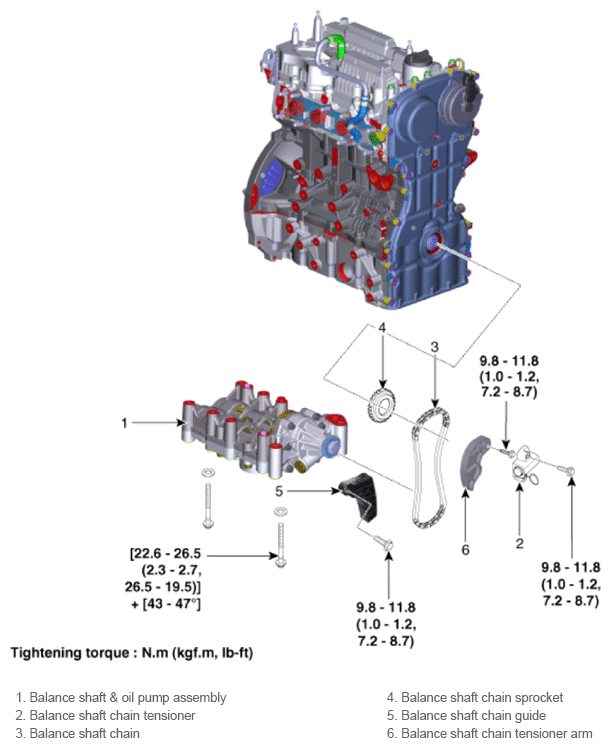

Fig 1: Balance Shaft Module Components Location With Torque Specification

G13538962

Courtesy of HYUNDAI MOTOR AMERICA
