Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

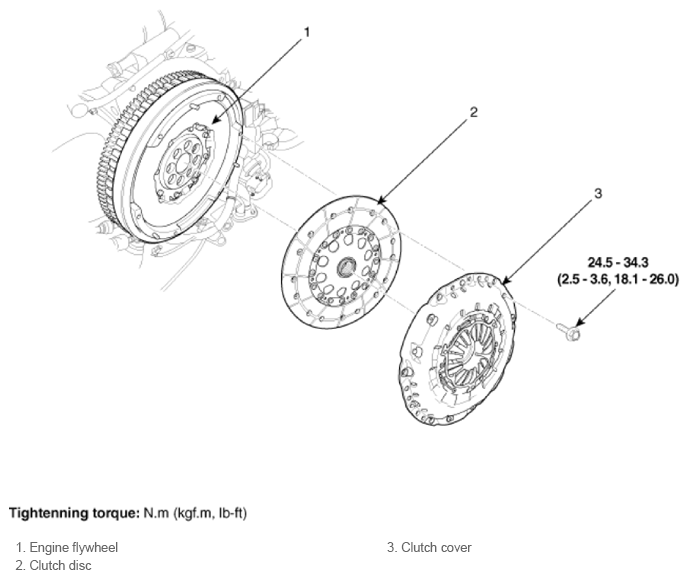

Fig 1: Clutch Cover, Disc Components Location With Torque Specification
G13539632Courtesy of HYUNDAI MOTOR AMERICA
