Variant Coding (In Case That The GDS Isn't Connected To The Internet)

  1. Connect GDS to Data Link Connector (DLC).
  2. Turn "ON" the ignition switch.
  3. Perform variant coding in Vehicle S/W Management menu of the GDS. (Fig.3).

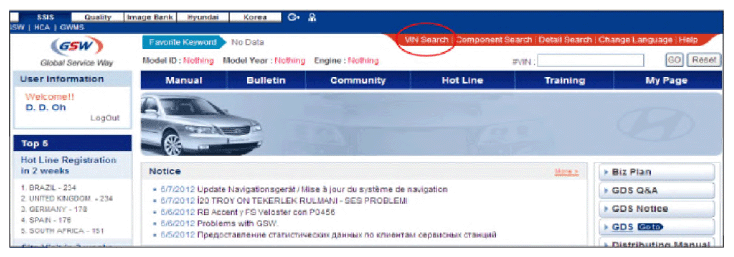

  4. Log in GSW website (http://ccc.hyundai-motor.com/) and then click "VIN Search". at the top center side of the screen.

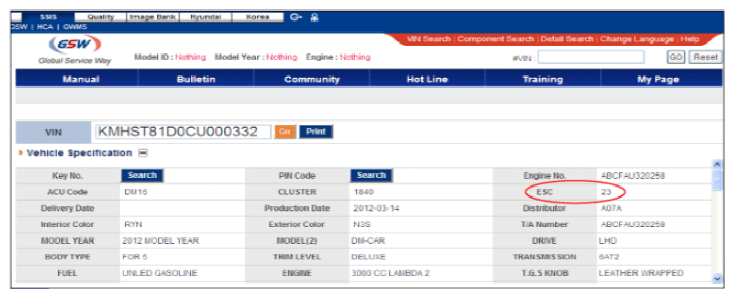

  5. Select ESP (ESC) and fill in VIN number (or body number) correctly, and check ESP (ESC) code. (Fig.4)

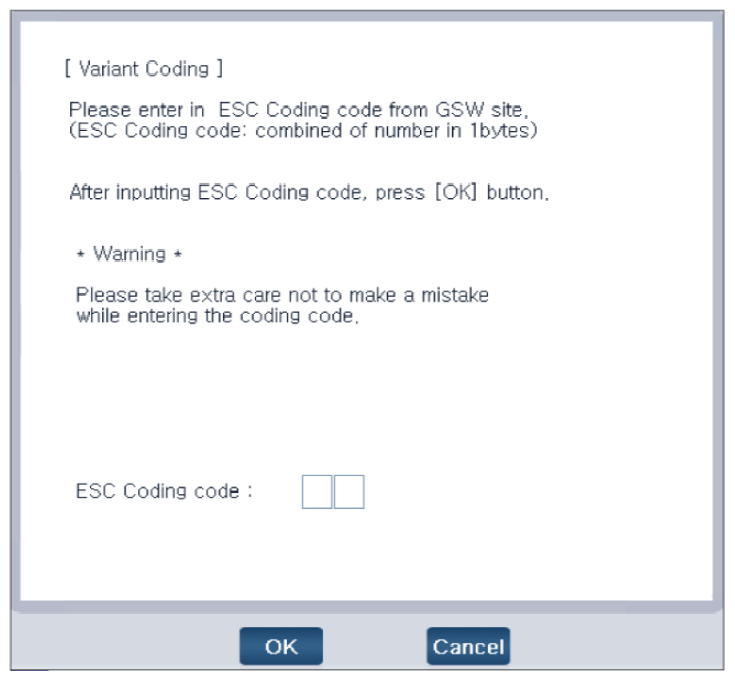

  6. Fill in the blank with ESP (ESC) code checked in GSW web site. (Fig.5)
  7. Check whether current variant code corresponds to the options which are applied to the vehicle.
  8. Turn "OFF" the ignition switch and wait for about 10 seconds, and then turn "ON" the ignition switch. Go to "VARIANT CODE RESET " procedure.
    NOTE: When HAC is activated, conduct "longitudinal G sensor Calibration". with GDS. (refer to C128504 )
    G13544538Courtesy of HYUNDAI MOTOR AMERICA
    G13544539Courtesy of HYUNDAI MOTOR AMERICA
    G13544540Courtesy of HYUNDAI MOTOR AMERICA
