Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the knee airbag module (A) after loosening the mounting nuts.

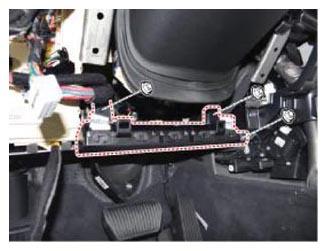

    Fig 1: Removing Knee Airbag Module With Mounting Nuts
    G11407831Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the knee airbag module connector (A).

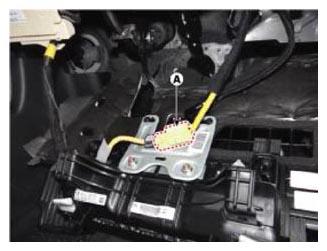

Fig 2: Locating Knee Airbag Module Connector
G11407832Courtesy of HYUNDAI MOTOR AMERICA

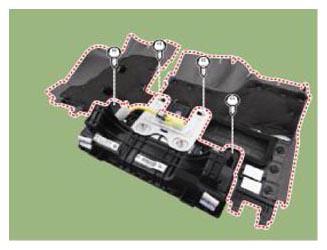

Fig 3: Removing Knee Airbag Module Connector With Mounting Nuts
G11407833Courtesy of HYUNDAI MOTOR AMERICA
