Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

  3. Remove the curtain airbag (A) after disconnecting the curtain airbag harness connector (B) and loosening the mounting bolts.

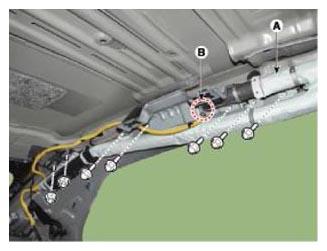

Fig 1: Removing Curtain Airbag With Mounting Bolts (1 Of 2)
G11407828Courtesy of HYUNDAI MOTOR AMERICA

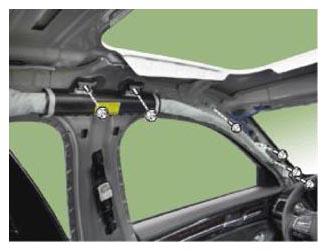

Fig 2: Removing Curtain Airbag With Mounting Bolts (2 Of 2)
G11407829Courtesy of HYUNDAI MOTOR AMERICA
