Component Location

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

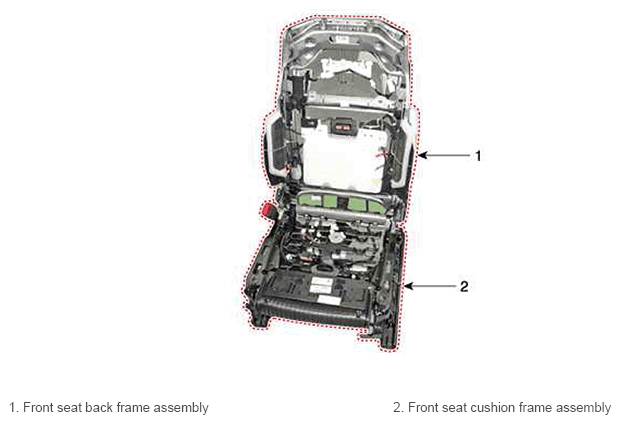

Fig 1: Locating Front Seat Back Frame And Cushion Frame Assembly
G11405867Courtesy of HYUNDAI MOTOR AMERICA
