Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing the belt, make sure not to damage the pretensioner.

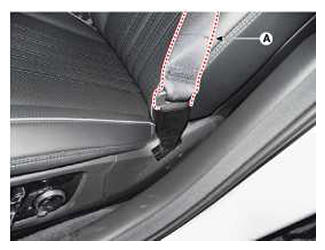

Remove the front anchor seat belt (A).

Fig 1: Locating Front Anchor Seat Belt
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:

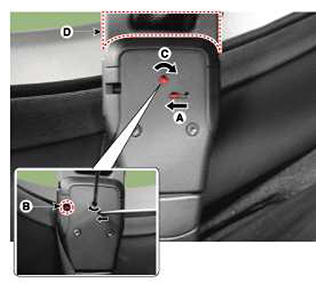

- Expose the red colored indicator pin (B) by pushing the slot hole (A) using a Ø 1.5mm pointed tool below image.
- Put a (-) driver (Ø4mm) into a latch hole (C) and turn it clockwise.
- Remove the connector by pulling seat belt (D).
Fig 2: Turning Driver Clockwise Inside Latch Hole
Courtesy of HYUNDAI MOTOR AMERICA
After opening the seat track cover and loosening the mounting bolts, remove the front seat assembly.
Tightening Torque:

49.0 - 63.7 N.m (5..0 - 6.5 kgf.m, 36.2- 47.0 lb-ft)

[Front]

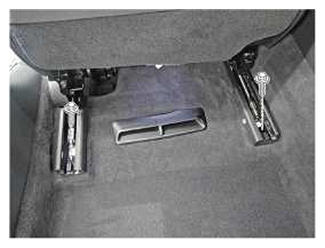

Fig 3: Removing Front Seat Rack Cover (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

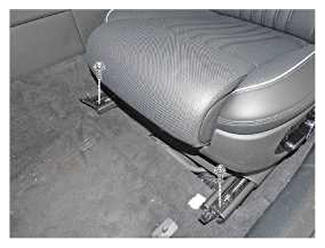

Fig 4: Removing Front Seat Rack Cover (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

[Rear]

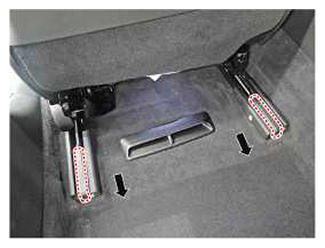

Fig 5: Removing Rear Seat Rack Cover (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

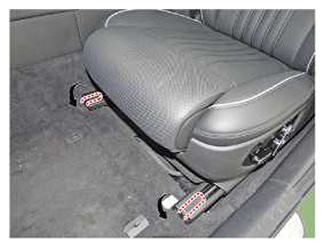

Fig 6: Removing Rear Seat Rack Cover (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

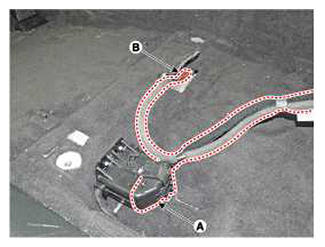

Disconnect the front seat integration connector (A) and rear monitor cable (B).

Fig 7: Locating Front Seat Integration Connector And Rear Monitor Cable

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

The rear monitor cable (B) is for the vehicles only equipped with the monitor as an optional part.

To install, reverse the removal procedure.
Information

The Installation Procedures of Seat Mounting Bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- Check the seat for smooth movement.
- For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
CAUTION:
- When coupling the tongue to the buckle, be careful not to twist the belt.

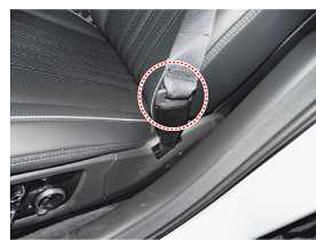

Fig 8: Coupling Tongue To Buckle
Courtesy of HYUNDAI MOTOR AMERICA
