Signal Waveform & Data

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

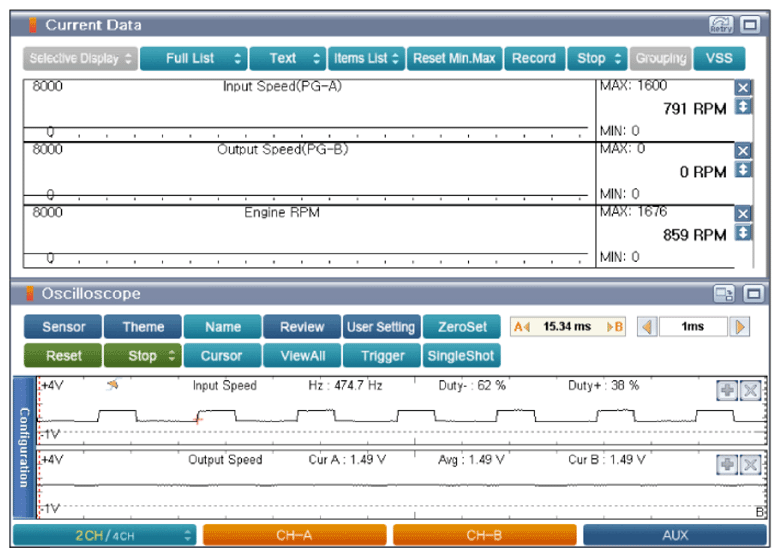

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%

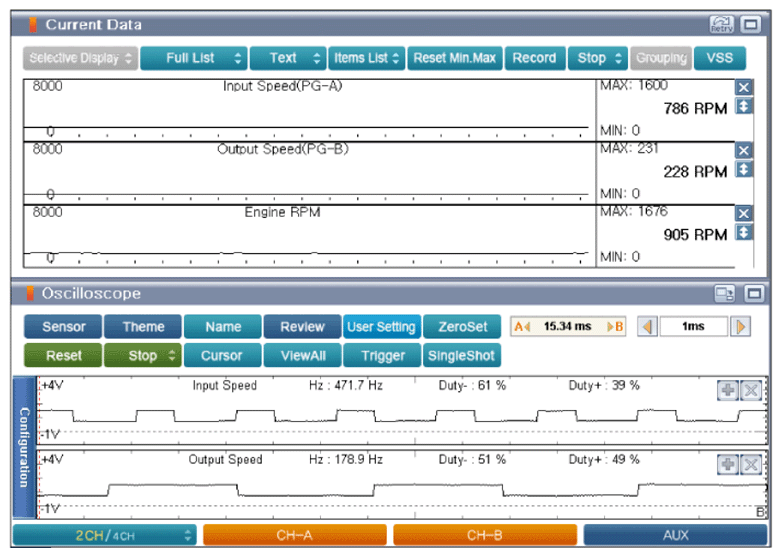

Input speed sensor - duty (-) 62%

Output speed sensor - duty (-) 50%
