Special Service Tools

Tool Name/Number	Illustration	Description
Strut spring compressor 09546-26000	Courtesy of HYUNDAI MOTOR AMERICA	Compression of coil spring
Ball joint remover 09568-2J100	Courtesy of HYUNDAI MOTOR AMERICA	Removal of ball joint
Engine support fixture (bar) 09200-3N000	Courtesy of HYUNDAI MOTOR AMERICA	Removal and installation of the transaxle. Except lower supporter, use beam only with new engine support fixture supporter (SST No.: 09200-2S100)
Engine support fixture (supporter) 09200-2S100	Courtesy of HYUNDAI MOTOR AMERICA	Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-2S200)
Stabilizer removal tool 09568-D2100	Courtesy of HYUNDAI MOTOR AMERICA	Remove the stabilizer link from the shock absorber.

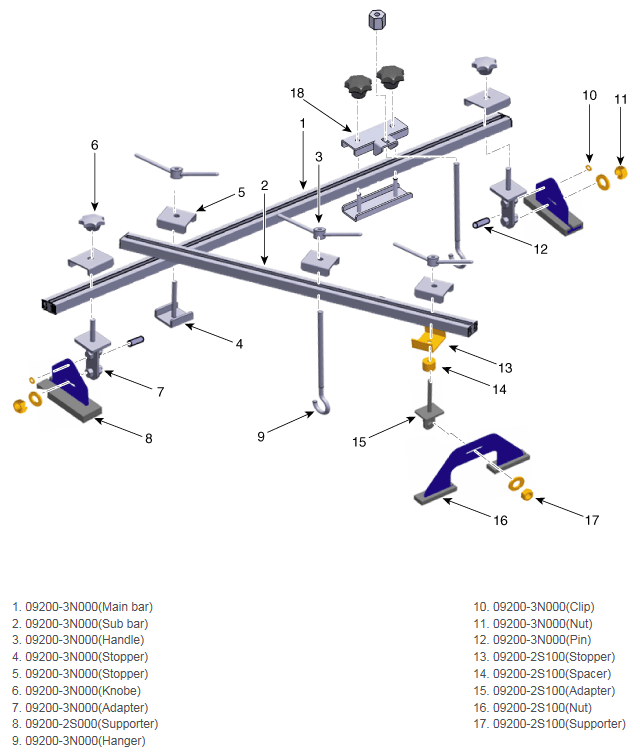

* Engine support fixture assembly drawing

Courtesy of HYUNDAI MOTOR AMERICA
