Components And Components Location: Components: [2WD]

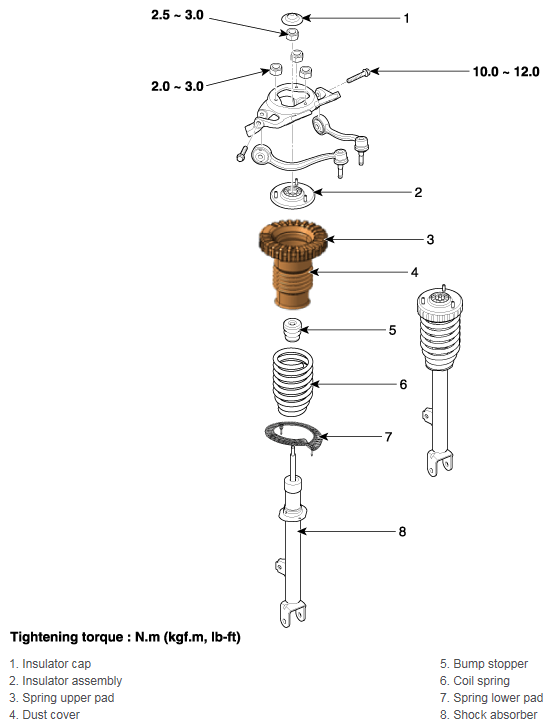

Fig 1: Exploded View Of Front Strut Assembly Components With Torque Specification (2WD)
G12716568Courtesy of HYUNDAI MOTOR AMERICA

[AWD]

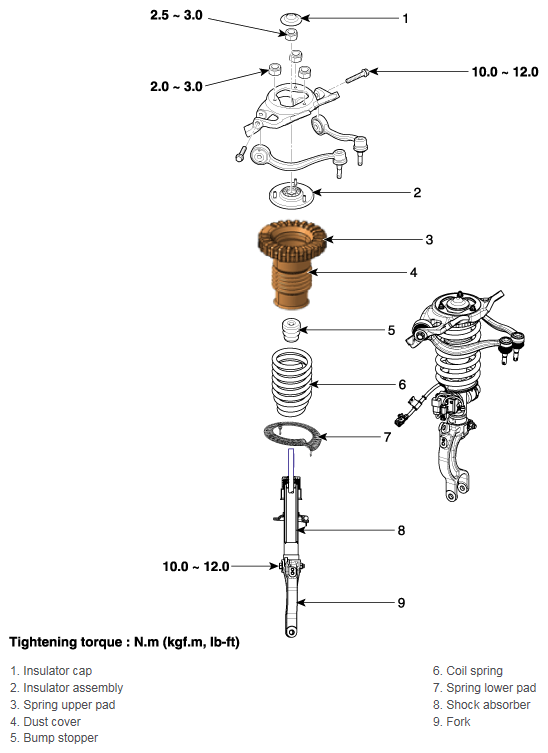

Fig 2: Exploded View Of Front Strut Assembly Components With Torque Specification (AWD)
G12716569Courtesy of HYUNDAI MOTOR AMERICA
