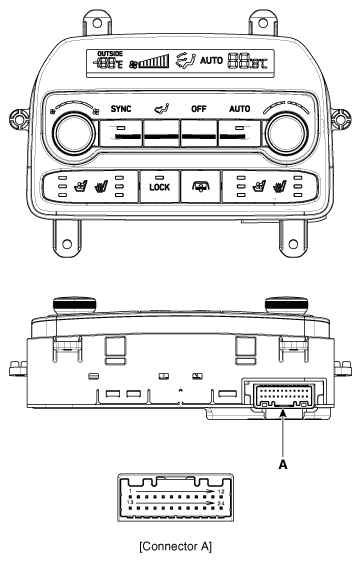

Components And Components Location: Components
CONNECTOR PIN FUNCTION DESCRIPTION
| Connector | Pin NO |
|---|---|
| 1 | Ground |
| 2 | Rheostat (ILL-) |
| 3 | - |
| 4 | LIN Left |
| 5 | - |
| 6 | - |
| 7 | B CAN (High) |
| 8 | - |
| 9 | Climate CAN (Low) |
| 10 | - |
| 11 | IGN 1 |
| 12 | IGN 2 |
| 13 | Ground |
| 14 | Detent Out (-) |
| 15 | - |
| 16 | - |
| 17 | LIN Right |
| 18 | - |
| 19 | B CAN (Low) |
| 20 | - |
| 21 | Climate CAN (High) |
| 22 | ISG B+ |
| 23 | ILL+ (TAIL) |
| 24 | Battery (+) |
