Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch ON.

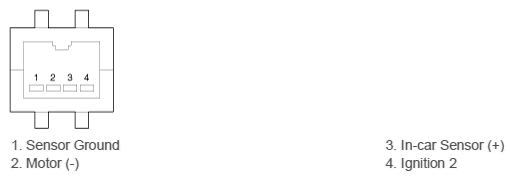

  2. Blow warm air into the in-car sensor air inlet. Measure the sensor resistance between 1 and 3 terminals.
G11342875Courtesy of
