Repair Procedures: Inspection

1. Check the plated parts of the hub assembly (A) for discoloration, peeling or other damage. If there is damage, replace the assembly.
2. Check the pulley (B) bearing play and drag by rotating the pulley by hand. Replace the pulley with a new one if it is noisy or has excessive play/drag.

Courtesy of

External Control Valve Compressor Inspection (GDS)

Compressor type: Fixed type compressor, External control valve, Internal control valve.

In cases of fixed type and internal control valve, it is possible to inspect compressor's operation with clutch noise. When it comes to External control valve, however, it cannot be checked in this way because it doesn't have a clutch.

So, ECV should be inspected with GDS as shown in illustration below.

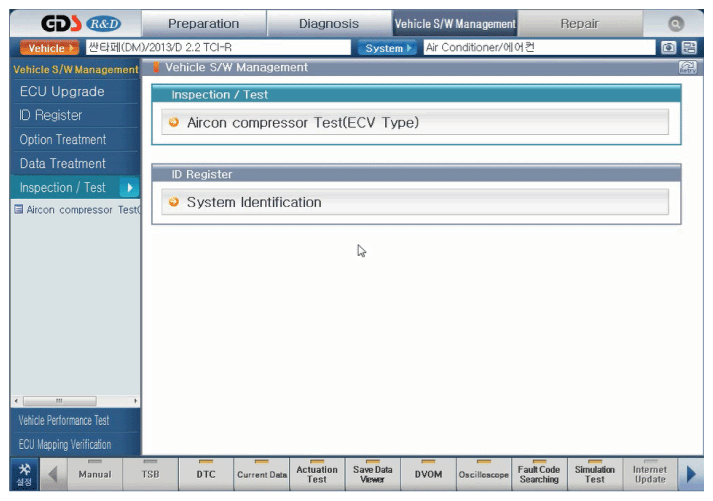

1. Connect GDS to the vehicle and select "Aircon Compressor Test (ECV type)"

   [ECV1]

   Courtesy of

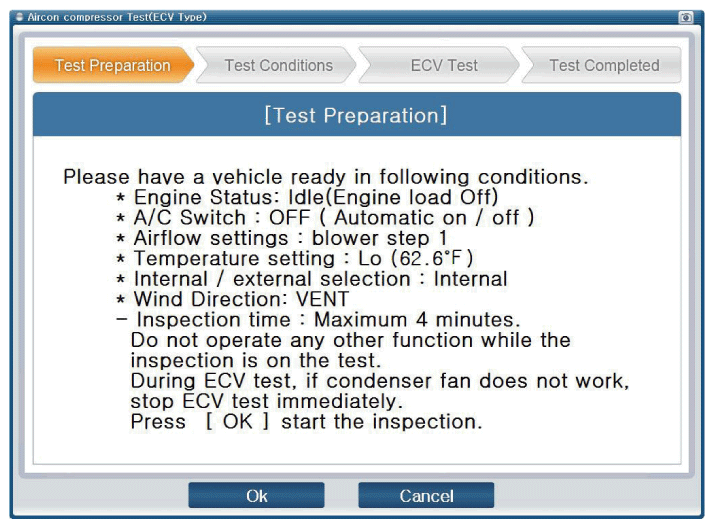

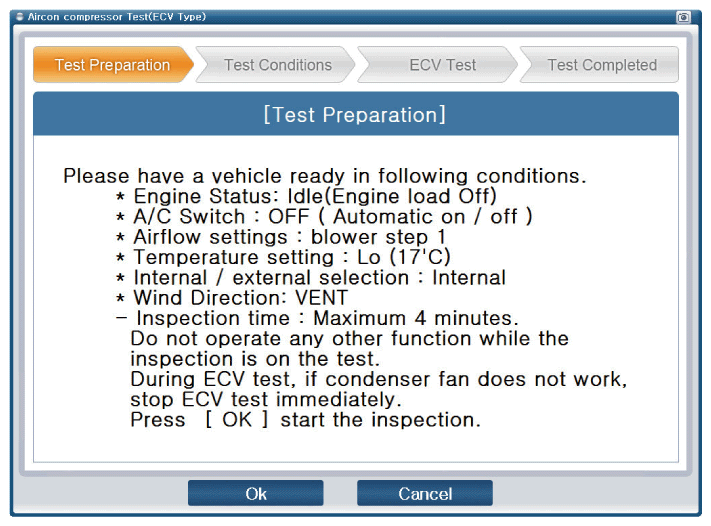

2. Make the vehicle ready according to the GDS instruction on the monitor. (Turn off A/C "switch" only)

   [ECV2]

   Courtesy of

   [ECV3]

   Courtesy of

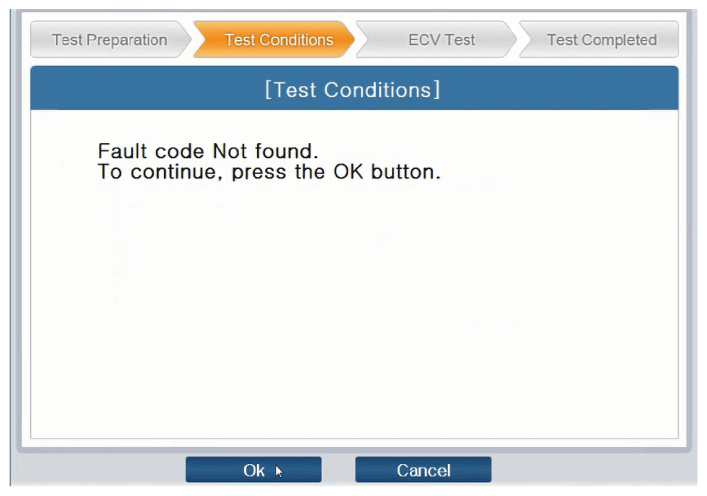

3. Check if other DTC codes are found before inspecting ECV compressor. If so, solve that problems first. If not, press "OK" button to continue.

   Information

   Do not continue inspection if these DTC codes are found: B1241, B1242, B1672, B1685, B1686, B1687

   [ECV4]

   Courtesy of

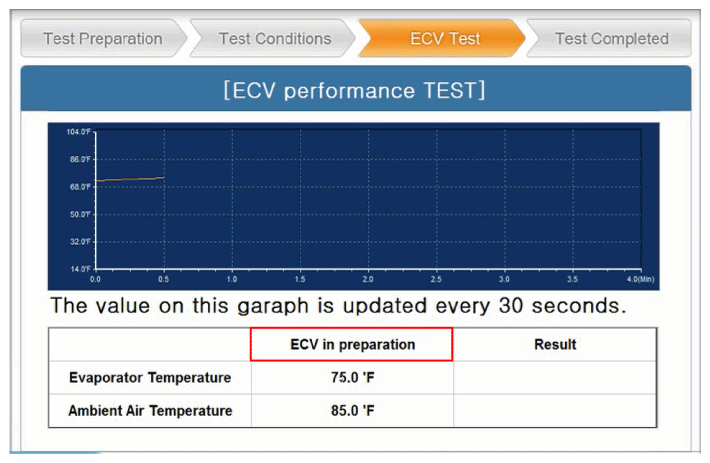

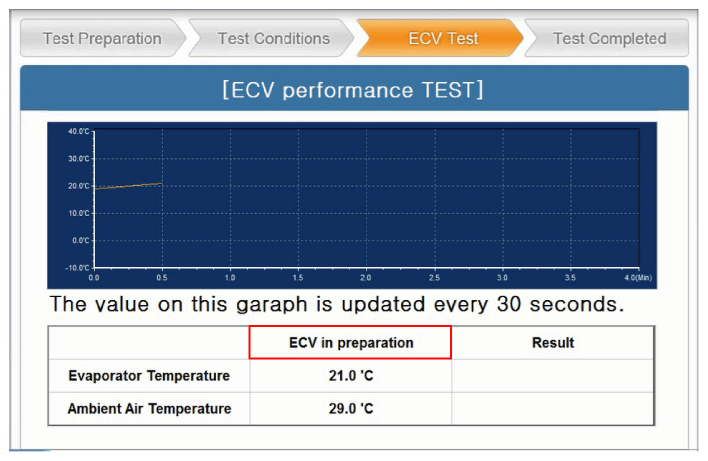

4. Start inspection

   [ECV5]

   Courtesy of

   [ECV6]

   Courtesy of

   CAUTION: Check if condenser fan is operating when condition is changed to "ECV running"
   CAUTION: Relief valve will be operated if a condenser fan doesn't work because of overpressure in the compressor. It helps the air conditioning system to be stabilized. by releasing refrigerant and oil. (To be closed if stabilized.)
   Refill refrigerant and oil after operation of Relief valve.
   Noise occurs when Relief valve is in operation.

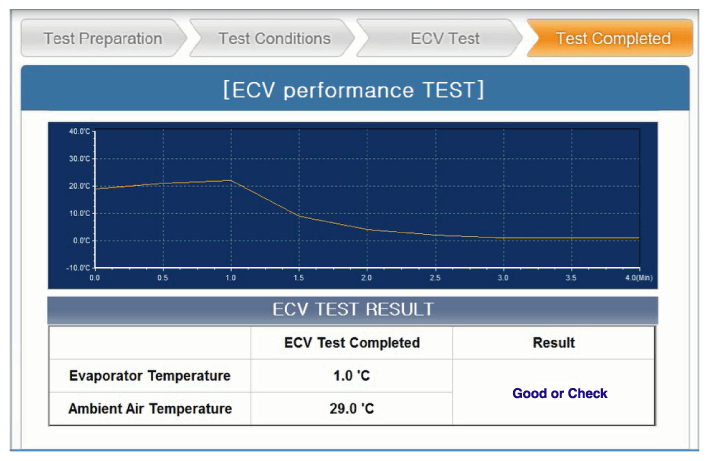

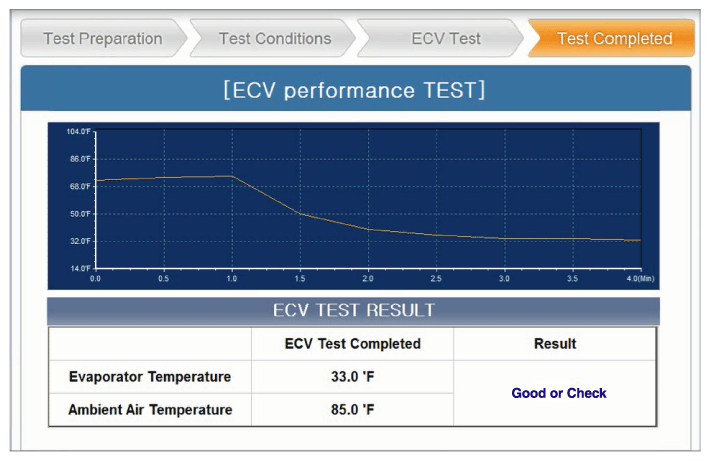

5. Check the result of inspection and click "Check Detail" if it's "Check". Follow the instruction and inspect ECV again from the first step.

[ECV7]

Courtesy of

[ECV8]

Courtesy of
