Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box upper cover.

    (Refer to Body - "CRASH PAD MAIN LOWER ASSEMBLY ")

  3. Loosen the mounting screw and then remove the shower duct (A).
    G11342891Courtesy of

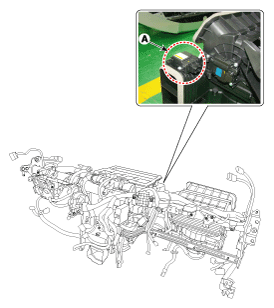

  4. Disconnect the evaporator temperature sensor connector, and then remove the cluster ionizer (A).
    G11342892Courtesy of
  5. Install in the reverse order of removal.
