Monitor DTC Status
WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Parked & Ignition ON.
- Connect GDS and select "DTC Analysis" mode.

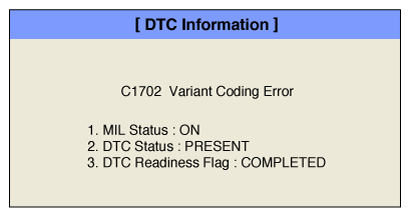

- Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)" menu bar to see DTC's information.
- Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
- Read "DTC Status" parameter.
- Is parameter displayed "Present fault"?
YES

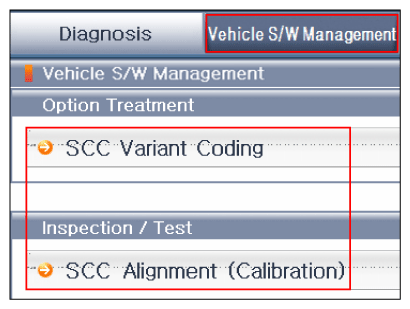

- Perform the "VARIANT CODING " and "SCC Alignment" at the "Vehicle S/W Management " mode by using GDS.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- This fault was repaired and SCC Module memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
