[Console Temperature Control Actuator]

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad main lower assembly.

    (Refer to Body - "CRASH PAD MAIN LOWER ASSEMBLY ")

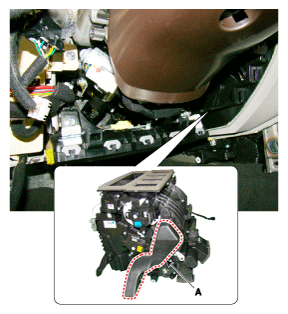

  3. Remove the driver's side shower duct (A) after loosening the screw.
    G11342927Courtesy of

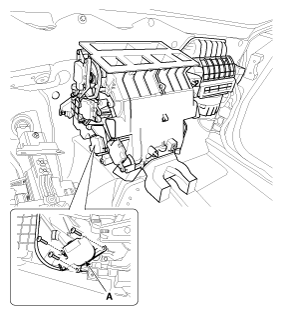

  4. Disconnect the console temperature control actuator connector, and then remove the temperature control actuator (A) after loosening the mounting screws.
    G11342928Courtesy of
  5. Install in the reverse order of removal.
