Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad main lower assembly.

    (Refer to Body - "CRASH PAD MAIN LOWER ASSEMBLY ")

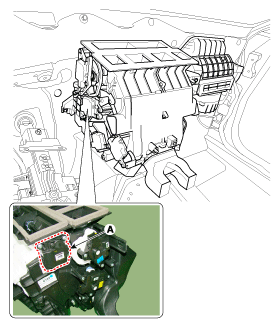

  3. Disconnect the connector and then remove the auto defogging actuator (A) after loosening the mounting screws.
    G11342930Courtesy of
  4. Install in the reverse order of removal.
