Repair procedures: Replacement

1. Remove the rear door window glass.

   (Refer to Rear Door - "REAR DOOR WINDOW GLASS ")

2. Remove the rear door outside handle.

   (Refer to Rear Door - "REAR DOOR OUTSIDE HANDLE ")

3. Loosen the rear door outside handle base mounting bolt (A).
4. After loosening the mounting bolts and nuts, remove the rear door outside handle by pulling upward the rear door channel (A).

   Tightening torque:

   Bolt: 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

   Nut: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

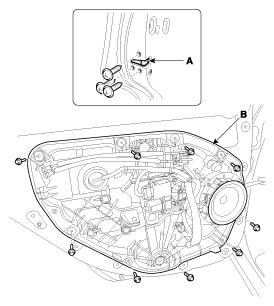

5. Loosen the rear door latch (A) mounting screws.
6. After loosening the mounting bolts, remove the rear door module (B).

   Tightening torque:

   Bolt: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

   Screw: 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

7. Disconnect the connectors (A) and front door module wiring harness.
8. Remove the rear door latch assembly.

   (Refer to Front Door - "REAR DOOR LATCH ")

9. Remove the rear speaker.

   (Refer to Body Electrical System - "SPEAKERS ")

10. Remove the rear power window motor.

    (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

11. Install in the reverse order of removal.

Information

• Make sure connectors are connected properly and each rod is connected securely.
• Make sure the door locks/unlocks and opens/closes properly
