Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Be careful not to scratch or punch the crash pad garnish and door trim upper garnish because these parts are made of weak material (real wood).
Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.

After loosening the mounting clips, remove the front door frame inner cover (A).
CAUTION:
- Be careful not to break the corner (B).
Using a flat-tip or remover, remove the front door pull handle cap (A).
Pull the front door inside handle using a flat head screwdriver and remove the cap (A) through the hole inside the handle.

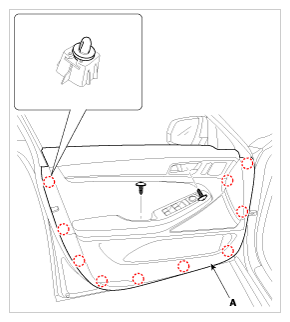

After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat-tip screwdriver.
Remove the front door inside handle cage (A).
Remove the front door extension connector (B).
Install in the reverse order of removal.

Information

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Make sure the glass is operated properly.
