Repair Procedures: Replacement
WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front door module.
(Refer to Front Door Module )

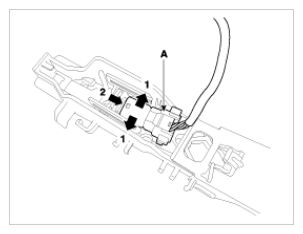

- To remove the front door outside handle base connector (A), widen both sides of the wiring fastener (A) and then push back the front door outside handle base connector.

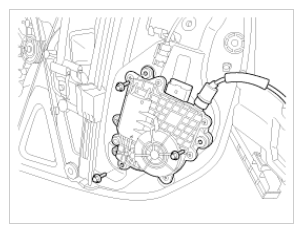

- Loosen the front door regulator module mounting bolt.

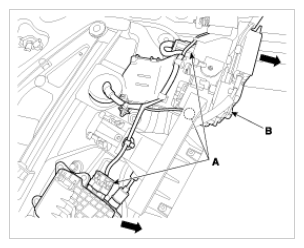

- Disconnect the front door latch connector (A).
- Remove the front door latch assembly (B) by pulling it in the direction of the arrow.
- Disconnect the front door inside handle cage and then remove the cable by pushing it rearward.

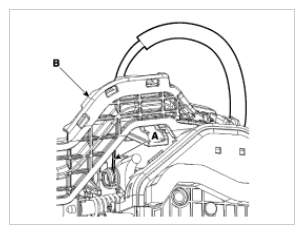

- Disconnect the front door outside the front door handle cable (A) and then remove the support bracket (B).
- Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
