Projected Dimensions
WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

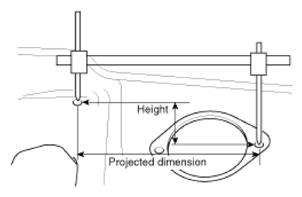

- The dimensions are measured by projecting the measurement points on the vehicle surface onto the reference dimensions.
- If the length of the tracking gauge proves is adjustable, measure the dimensions by lengthening one of the two probes to the height difference between the two measuring surfaces.
