General Service Information: Disassembly

If the disassembly procedure is so complex that it requires many parts to be disassembled, all parts should be disassembled in a way that will not affect their performance or external appearance.

1. Inspection of parts

   Each part, when removed, should be carefully inspected for malfunction, deformation, damage, and other problems.

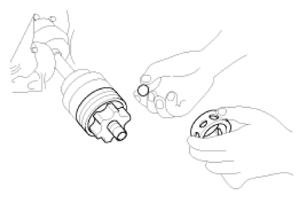

   Fig 1: Disassembling Inspection Of Parts

   Courtesy of HYUNDAI MOTOR AMERICA
2. Arrangement of parts

   All disassembled parts should be carefully arranged for effective reassembly.

   Be sure to separate and distinguish the parts to be replaced from those that will be used again.

   Fig 2: Caution For Arrangement Of Parts

   Courtesy of HYUNDAI MOTOR AMERICA
3. Cleaning parts for reuse

All parts to be used again should be carefully and thoroughly cleaned in an appropriate method.

Fig 3: Cleaning Parts For Reuse

Courtesy of HYUNDAI MOTOR AMERICA
