Repair Procedures: Removal
WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the Negative (-) Battery terminal.
- If it is necessary to remove multifunction switch assembly, remove the steering wheel.
(Refer to Steering - "STEERING WHEEL ")
- Remove the steering column upper shrouds.
(Refer to Body - "STEERING COLUMN AND SHAFT ")
- Remove the Clock Spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

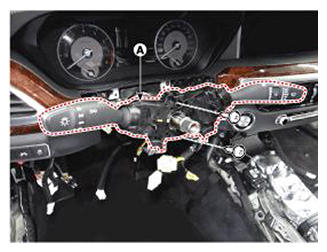

- Disconnect the Multifunction Switch Connector (A).

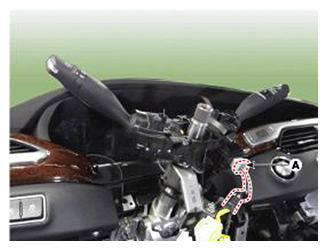

- Remove the Multifunction Switch (A) after loosening the Screws.
