Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

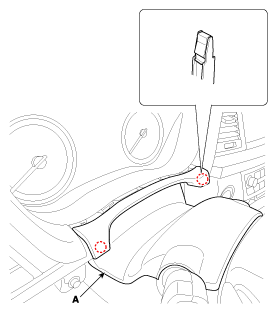

  2. Remove the steering column upper shroud (A).

    (Refer to STEERING COLUMN SHROUD LOWER PANEL Body )

    G11342513Courtesy of
  3. Disconnect the multifunction switch connector (A).
    G11342514Courtesy of
  4. Remove the wiper switch (A) by pushing the lock pin (B).
    NOTE: When removing the wiper & washer switch only, release the lock of wiper switch without removing the steering wheel.
    G11342515Courtesy of
  5. If it is necessary to remove multifunction switch assembly, remove the steering wheel.

    (Steering System - "Steering Column and Shaft ")

  6. Remove the clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

    G11342516Courtesy of
  7. Loosen the screws (2 EA) and remove the multifunction switch assembly (A).
G11342517Courtesy of
