Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When servicing the washer pump, be careful not to damage the washer pump seal.
Do not operate the washer pump before filling the washer reservoir.

Failure to do so could result in premature pump failure.

Disconnect the negative (-) battery terminal.
Remove the right wheel house cover.

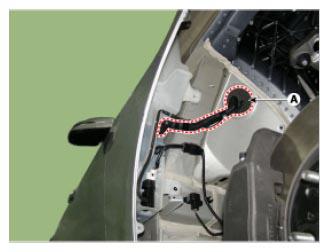

Remove the hose (A) for washer reservoir inlet removal.

Courtesy of
Disconnect the connector (A).

Courtesy of
Remove the reservoir washer inlet (A) after loosening the mounting bolt.

Courtesy of

Courtesy of
loosening the mounting bolt (A).

Courtesy of
Remove the washer reservoir.
Remove the head lamp washer hose (A)

Courtesy of
Disconnect the washer motor connector (A) and level sensor connector (B).

Courtesy of

Courtesy of
Remove the washer motor and level sensor switch (B).

Courtesy of
