Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the crash pad garnish (LH).

    (Refer to Body - "CLUSTER FASCIA PANEL ")

  4. Remove the crash pad lower penal switch (A) after disengaging the mounting clip.
    Fig 1: Locating Crash Pad Lower Penal Switch
    G11419760Courtesy of HYUNDAI MOTOR AMERICA
  5. Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.
Fig 2: Rheostat Switch Connector Terminals
G11419761Courtesy of HYUNDAI MOTOR AMERICA

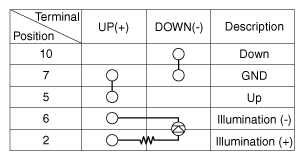

Fig 3: Rheostat Switch Terminal Continuity Chart
G11419762Courtesy of HYUNDAI MOTOR AMERICA
