Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch.
    Fig 1: Hazard Lamp Switch Connector Terminals
    G11419755Courtesy of HYUNDAI MOTOR AMERICA
    No Description
    1 Indicator (+)
    2 Illumination (+)
    3 Harzard lamp
    4 Ground
    5 Indicator (+)
    6 Illumination (-)
    Fig 2: Checking For Continuity Between Hazard Lamp Switch Terminals
    G11419756Courtesy of HYUNDAI MOTOR AMERICA

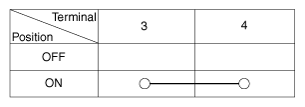

    Fig 3: Hazard Lamp Switch Terminal Continuity Chart
    G11419757Courtesy of HYUNDAI MOTOR AMERICA
