WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

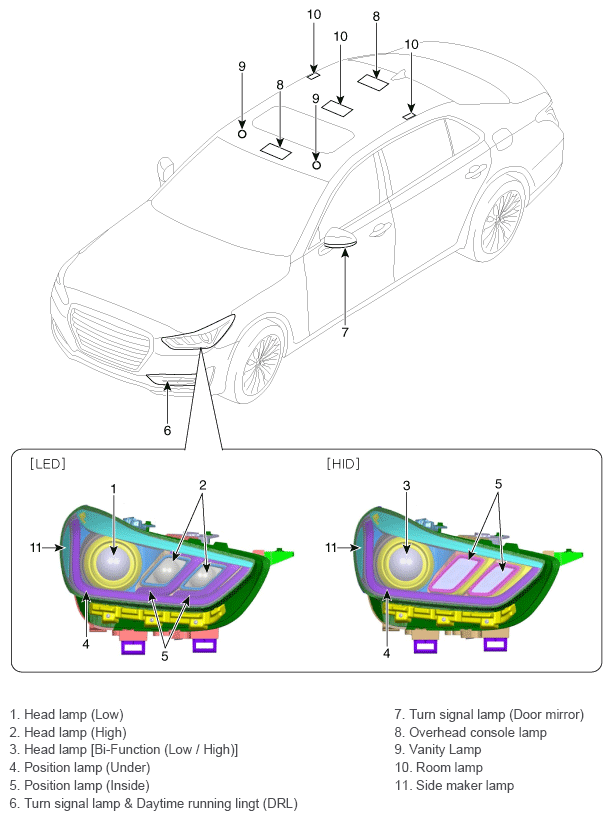

Fig 1: Locating Lighting System Component (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

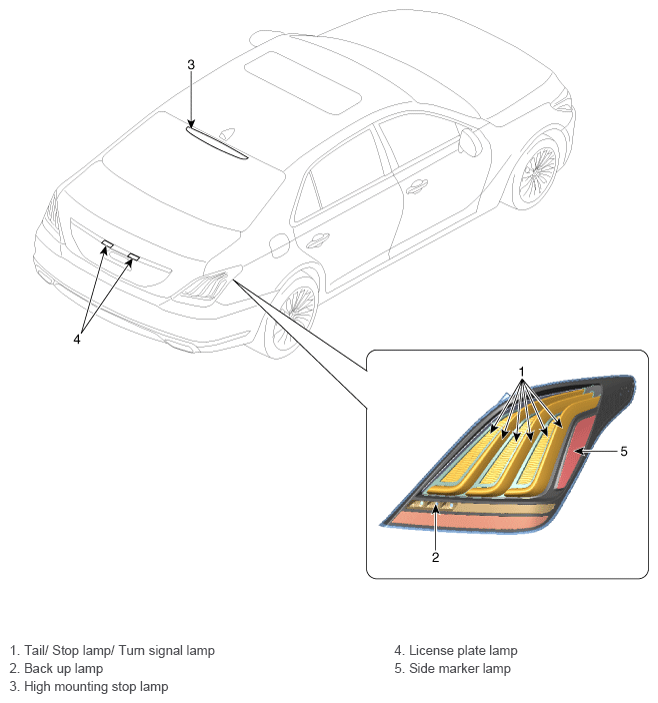

Fig 2: Locating Lighting System Component (2 Of 2)
