Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from the front hub.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

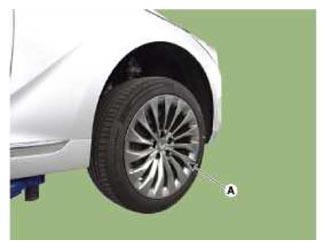

Fig 1: Locating Front Wheel And Tire With Nuts
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire.
Remove the under cover (A) & (B).

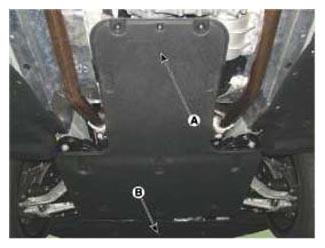

Fig 2: Locating Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cross member (A) by removing bolts.
Tightening Torque:

58.8 - 73.5 N.m (6.5 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

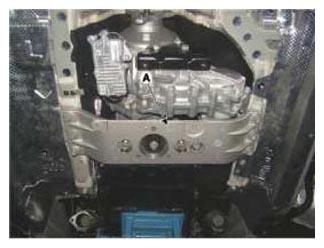

Fig 3: Locating Cross Member
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- When removing the cross member (A), using a jack for safety.
Remove the front propeller shaft by loosening bolts. [Both side]
Tightening Torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

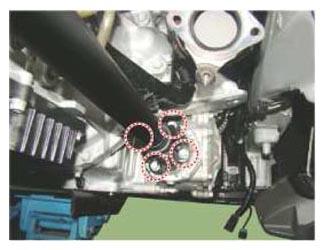

Fig 4: Front Propeller Shaft Bolts
Courtesy of HYUNDAI MOTOR AMERICA

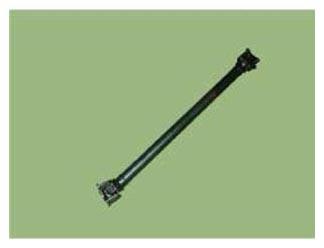

Fig 5: Front Propeller Shaft
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
1. When retightening the propeller shaft mounting bolts after removing them, each bolt and washer must be placed in its original position and bolt insertion direction must be the same as before, so make marks not to allow the bolts and washers to be mixed up before removing the propeller shaft.
2. If the position and direction of the propeller shaft mounting bolts and washers are reversed, it may cause vibration and noise at high vehicle speeds due to imbalance in the propeller shaft.
Install in the reverse order of removal.
