Monitoring DTC Status
WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS to "DATA LINK CONNECTOR (DLC)".
- IG key "ON", Engine "OFF".

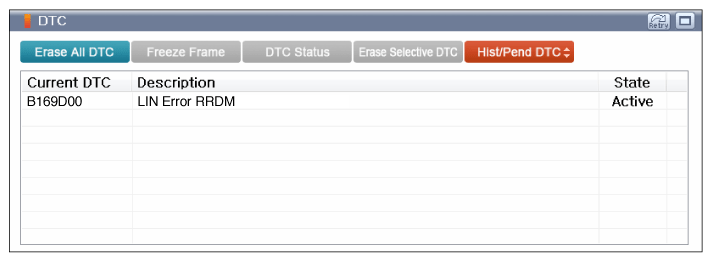

- Select "Diagnostic Trouble Codes (DTC)" with GDS.
- Monitor the diagnostic trouble code and present of the trouble code.
- Erase the DTC and operate the vehicle within DTC Enable conditions in General information.
- Is the DTC output again?
YES
- Go to "Wiring Inspection " procedure.
NO
- Fault is intermittent caused by poor contact in RRDM*'s connector or DDM*'s connector, or DDM* memory was not cleared after repair.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "Verification of Vehicle Repair " procedure.
NOTE: RRDM* : "REAR DOOR MODULE RH"
DDM*: "DRIVER DOOR MODULE"
