[In-Car Sensor (Front)]

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Using a screwdriver or remover, remove the crash side cover (A).

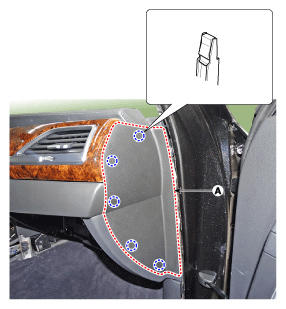

    Fig 1: Removing Crash Side Cover Using Screwdriver Or Remover
    G11419990Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the glove box.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX ")

  4. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

  5. Remove the crash pad center panel assembly [RH] (A) after loosening the mounting screw.
    Fig 2: Removing RH Crash Pad Center Panel Assembly
    G11419991Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the crash pad center garnish assembly [RH] (A) after loosening the mounting screw.
    Fig 3: Locating RH Crash Pad Center Garnish Assembly
    G11419992Courtesy of HYUNDAI MOTOR AMERICA
  7. Disconnect the connector (A) and then remove the in-car sensor (B) after loosening the mounting screws.
    Fig 4: Locating In-Car Sensor And Connector
    G11419993Courtesy of HYUNDAI MOTOR AMERICA
  8. To install, reverse the removal procedure.
