Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER COVER ")

  5. Remove the hood latch assembly.

    (Refer to Body - "HOOD LATCH ASSEMBLY ")

  6. Remove the oil cooler.

    (Refer to Engine Mechanical System - "RADIATOR ")

  7. Remove the 2 nuts, and then disconnect the discharge line (A) and liquid line (B) from the condenser.
    Fig 1: Locating Discharge Line And Liquid Line Of Condenser
    G11419967Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the condenser (A) from radiator.

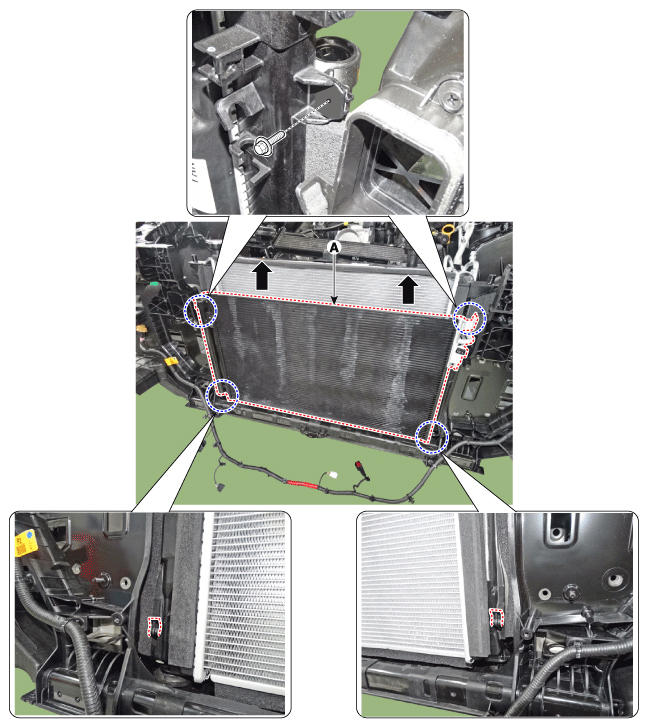

    Fig 2: Removing Condenser From Radiator
    G11419968Courtesy of HYUNDAI MOTOR AMERICA
  9. To install, reverse the removal procedure.
    NOTE:
    • If you're installing a new condenser, add refrigerant oil.
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
    • Be careful not to damage the radiator and condenser fins when installing the condenser.
    • Charge the system, and test its performance.
