Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

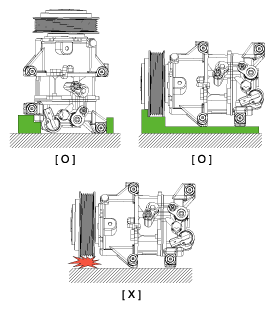

NOTE: Precautions for using the plastic pulley

Be careful not to place the pulley to downwards of the floor or table.

Fig 1: Precautions For Using Plastic Pulley - Be Careful Not To Place Pulley To Downwards Of Floor Or Table
Courtesy of HYUNDAI MOTOR AMERICA
Be careful not to apply the external force and impact on pulley while moving or using.

Fig 2: Precautions For Using Plastic Pulley - Be Careful Not To Apply External Force And Impact On Pulley While Moving Or Using
Courtesy of HYUNDAI MOTOR AMERICA
Be careful not to apply force to the pulley.

Fig 3: Precautions For Using Plastic Pulley - Be Careful Not To Apply Force To Pulley
Courtesy of HYUNDAI MOTOR AMERICA

If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery/charging station.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM COVER ")
Loosen the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")
Remove the bolts, then disconnect the suction line (A) and discharge line (B) from the compressor.
Tightening Torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
NOTE:
- Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
Fig 4: Locating Suction Line And Discharge Line Of Compressor With Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the compressor clutch connector (A).

Fig 5: Locating Compressor Clutch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the compressor (A) by loosening the mounting bolts.
Tightening Torque:

20.0 - 32.95 N.m (2.04 - 3.36 kgf.m, 14.75 - 24.30 lb-ft)

Fig 6: Locating Compressor
Courtesy of HYUNDAI MOTOR AMERICA
