[Ultra Optical Camera - Front]

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

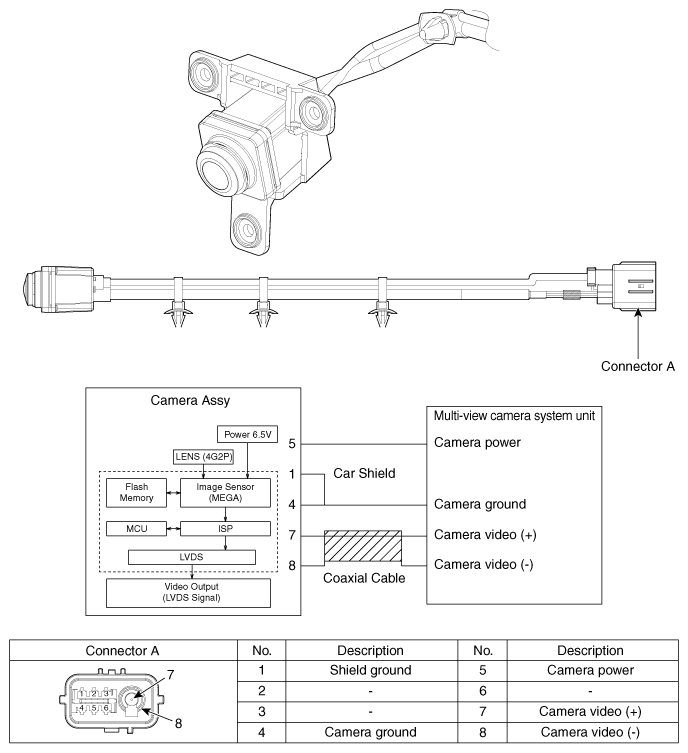

Fig 1: PantoScopic Camera Circuit Diagram (Ultra Optical Camera - Front)
G11419837Courtesy of HYUNDAI MOTOR AMERICA
