Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

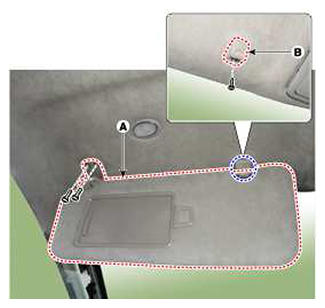

Loosen the mounting screws, and then remove the sunvisor (A) and retainer (B).

Fig 1: Removing Sun Visor And Retainer With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

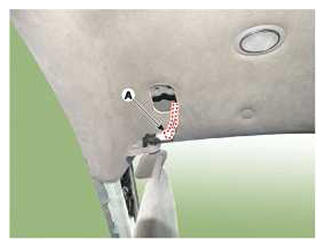

Disconnect the sunvisor lamp connector (A).

Fig 2: Locating Sun Visor Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
