Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the rear seat.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  4. Remove the canter pillar upper trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  5. Remove the rear pillar trim.

    (Refer to Interior Trim - "REAR PILLAR TRIM ")

  6. Remove the sunvisor and retainer.

    (Refer to Roof Trim - "SUNVISOR ")

  7. Remove the assist handle.

    (Refer to Roof Trim - "ASSIST HANDLE ")

  8. Remove the overhead console lamp.

    (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

  9. Using a screwdriver or remover, remove the inside rear view mirror (A).

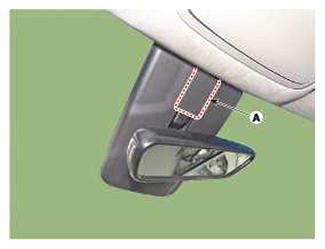

    Fig 1: Locating Inside Rear View Mirror (1 Of 2)
    G11405711Courtesy of HYUNDAI MOTOR AMERICA

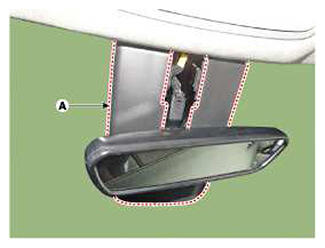

    Fig 2: Locating Inside Rear View Mirror (2 Of 2)
    G11405712Courtesy of HYUNDAI MOTOR AMERICA

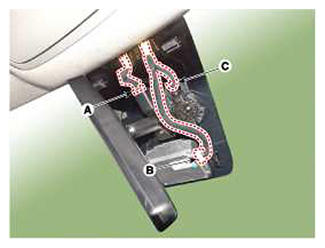

  10. Disconnect the inside rear view mirror connector (A), LDWS connector (B) and rain sensor (C).
    Fig 3: Locating Rear View Mirror Connector, LDWS Connector And Rain Sensor
    G11405713Courtesy of HYUNDAI MOTOR AMERICA

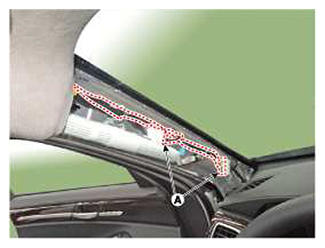

  11. Disconnect the roof trim main connectors (A) and the mounting clips in the front pillar.

    [Driver's]

    Fig 4: Locating Roof Trim Main (Driver) Connectors
    G11405714Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

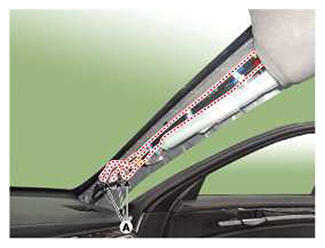

    Fig 5: Locating Roof Trim Main (Passenger) Connectors
    G11405715Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the connectors (A) and the mounting clips in the rear pillar.

    [LH]

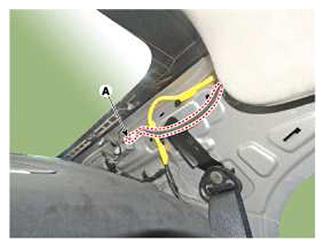

    Fig 6: Locating Rear Pillar (LH) Connectors
    G11405716Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

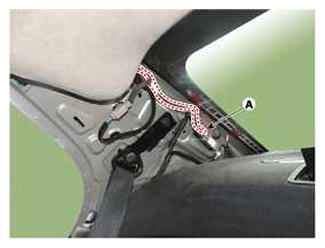

    Fig 7: Locating Rear Pillar (RH) Connectors
    G11405717Courtesy of HYUNDAI MOTOR AMERICA
  13. Using a clip remover, detach the roof trim assembly pin-type retainers (A).

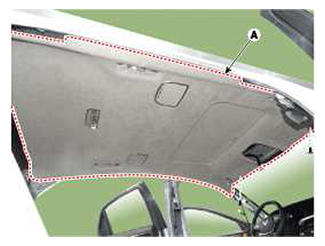

    Fig 8: Detaching Roof Trim Assembly Pin-Type Retainers
    G11405718Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the roof trim assembly (A) from the body panel and then carry it out of the vehicle through the rear door.

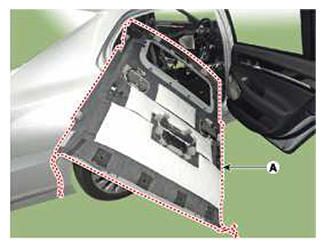

    Fig 9: Locating Roof Trim Assembly
    G11405719Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove roof trim wiring harness (A) from the roof trim (B).
    NOTE:
    • Take care not to damage the roof trim wiring harness (A) when removing.

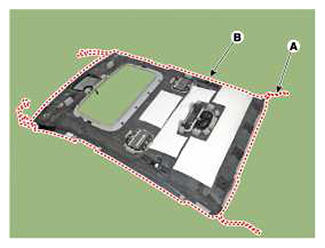

    Fig 10: Locating Roof Trim Wiring Harness And Roof Trim
    G11405720Courtesy of HYUNDAI MOTOR AMERICA

    Information

    1. When installing the roof trim wiring harness (A) on the roof trim, apply the hot melt continuously by using the hot melt gun tool.
    2. Put anti-noise pad on roof trim to prevent the noise.
  16. To install, reverse the removal procedure.

    Information

    • Make sure the connector is connected properly.
    • Replace any damaged clips.
