Fork Assembly [With AWD]

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle, and make sure it is securely supported.

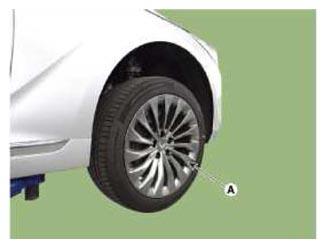

Remove the front wheel and tire (A) from the front hub.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Fig 1: Locating Front Wheel And Tire From Front Hub
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire.

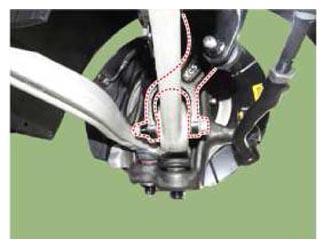

Loosen the Nut (A) and then remove the stabilizer link from the front strut assembly.

Fig 2: Removing Stabilizer Link From Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

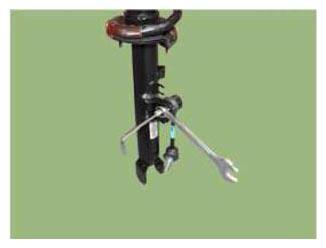

- Using a hex wrench, fix the end of stabilizer link when loosening the nut.
Fig 3: Loosening Stabilizer Link Nut
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt and nut, separate the front shock absorber assembly from the lower arm.
Tightening Torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Fig 4: Separating Front Shock Absorber Assembly From Lower Arm
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolts and then remove the cable Bracket (B) from the fork assembly.
Tightening Torque:

A: 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

B: 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Fig 5: Removing Cable Bracket From Fork Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolt and then remove the fork assembly from the front strut assembly.
Tightening Torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

Fig 6: Removing Fork Assembly From Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
