Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

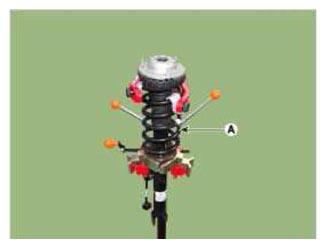

Compress the coil Spring (A) with a strut spring compressor. Do not compress the spring excessively.

Fig 1: Compressing Coil Spring With Strut Spring Compressor
Courtesy of HYUNDAI MOTOR AMERICA

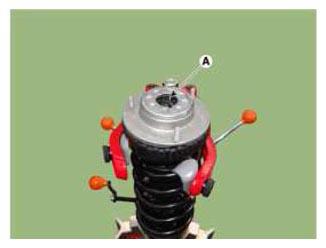

Remove the lock nut (A). Gradually turn the bolt on the spring compressor to slowly release the tension from the spring. Then, disconnect the components.
Tightening Torque:

HPD: 24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 18.1 lb-ft)

ECS: 50.0 - 59.8 N.m (5.1 - 6.1 kgf.m, 36.9 - 44.1 lb-ft)

Fig 2: Locating Lock Nut
Courtesy of HYUNDAI MOTOR AMERICA

Information
- (Refer to Front Strut Assembly - "COMPONENTS AND COMPONENTS LOCATION ")
Reassembly in the reverse order of disassembly.
