Components and Components Location: Components: [AWD]
WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

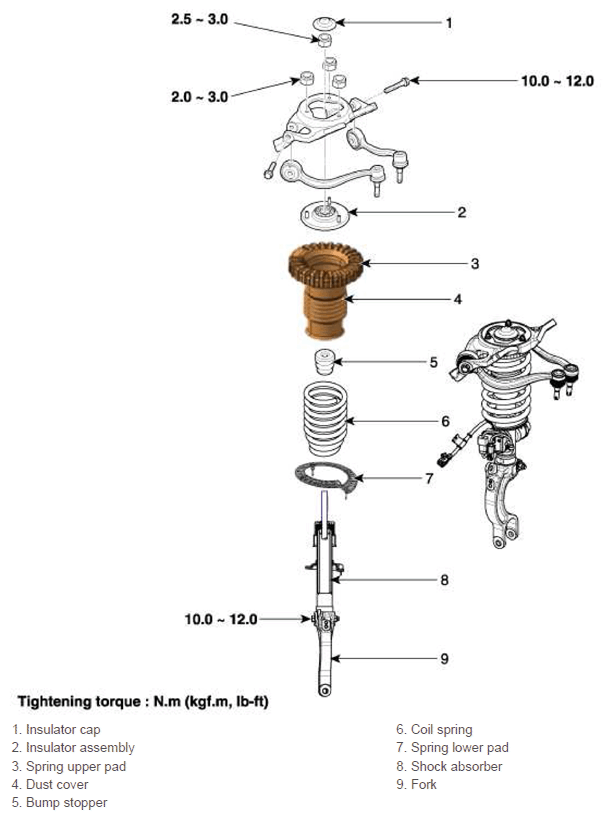

Fig 1: Exploded View Of Front Strut Assembly Components With Torque Specifications (AWD)
