Components Location: [2WD]

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

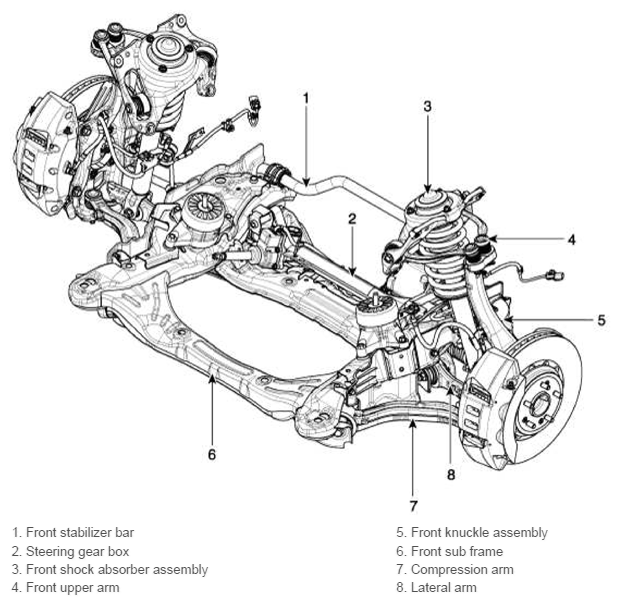

Fig 1: Locating Front Suspension System Components (2WD)
G11407437Courtesy of HYUNDAI MOTOR AMERICA
