Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  4. Remove the AVN front monitor.

    (Refer to Body Electrical System - "AVN FRONT MONITOR ")

  5. Remove the AVN head unit.

    (Refer to Body Electrical System - "AVN HEAD UNIT ")

  6. Remove the instrument cluster.

    (Refer to Body Electrical System - "INDICATORS & GAUGES ")

  7. Remove the lower crash pad panel [RH].

    (Refer to Crash Pad - "CRASH PAD SIDE GARNISH ASSEMBLY [RH] ")

  8. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  9. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

  10. After loosening the mounting nuts, remove the HUD (Head Up Display) bracket (A).

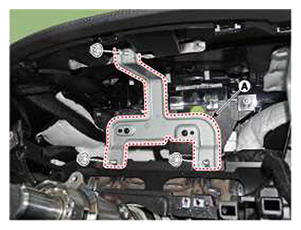

    Fig 1: Removing HUD (Head Up Display) Bracket With Mounting Nuts
    G11405679Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the head up display connector.

    (Refer to Body Electrical System - "HEAD UP DISPLAY SYSTEM ")

  12. Disconnect the security lamp connector (A).

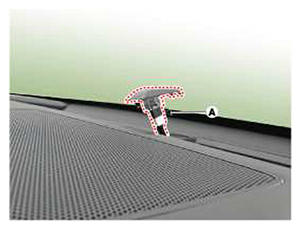

    Fig 2: Locating Security Lamp Connector
    G11405680Courtesy of HYUNDAI MOTOR AMERICA
  13. After loosening the mounting bolts and releasing the airbag connector locking buttons, remove the active vent connectors (A).

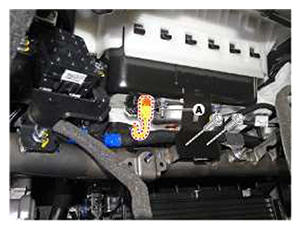

    Fig 3: Locating Active Vent Connectors
    G11405681Courtesy of HYUNDAI MOTOR AMERICA
  14. After loosening the mounting bolts and nuts, remove the main crash pad assembly (A).

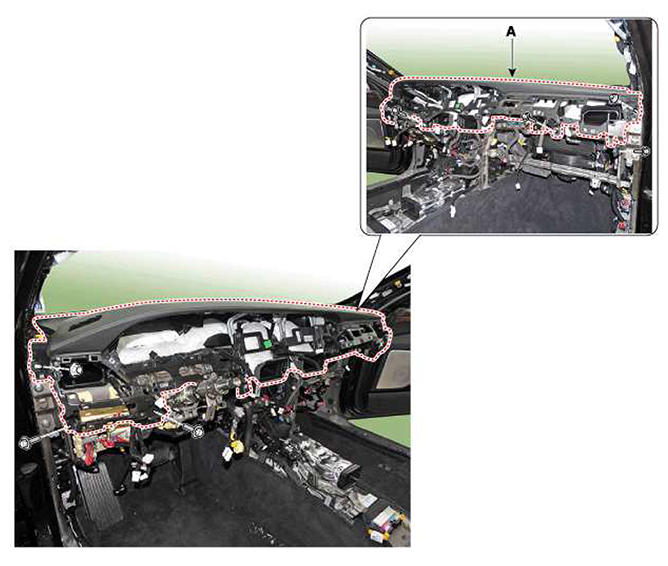

    Fig 4: Removing Main Crash Pad Assembly With Mounting Bolts And Nuts
    G11405682Courtesy of HYUNDAI MOTOR AMERICA
  15. Disconnect the speaker connector (A).

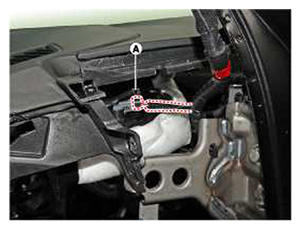

    Fig 5: Locating Speaker Connector
    G11405683Courtesy of HYUNDAI MOTOR AMERICA
  16. Disconnect the passenger's airbag connectors (A).

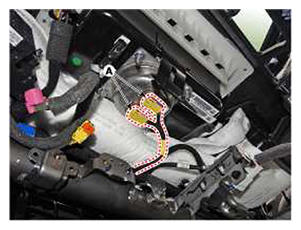

    Fig 6: Locating Passenger Airbag Connectors
    G11405684Courtesy of HYUNDAI MOTOR AMERICA
  17. To install, reverse the removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the Anthi-Theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
