Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Do not disassembly the steering gear box.
  • If disassembly the steering gear box, the quality (Noise/Cleanliness/Functions) not guaranteed.

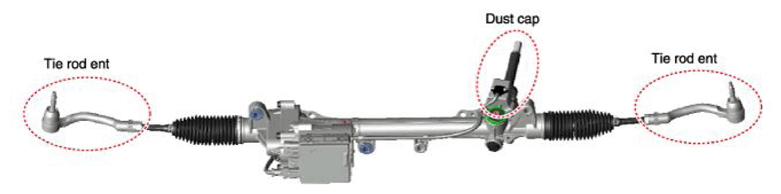

Fig 1: Tie Rod End And Dust Cap
G11407715Courtesy of HYUNDAI MOTOR AMERICA
