Terminal Function

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

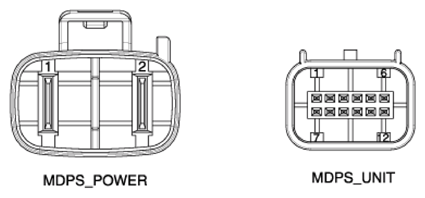

Fig 1: MDPS Power Connector Terminal

Courtesy of HYUNDAI MOTOR AMERICA

Type	Pin No	Description
Battery	1	Battery -
Battery	2	Battery +
Vehicle	1	-
	2	-
	3	-
	4	-
	5	-
	6	-
	7	Ignition
	8	High_CAN
	9	Low_CAN
	10	-
	11	-
	12	-
