Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

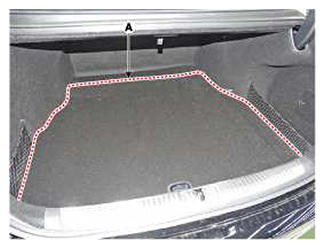

Remove the luggage board (A).

Fig 1: Locating Luggage Board
Courtesy of HYUNDAI MOTOR AMERICA

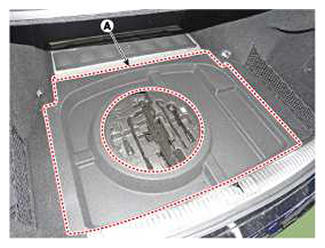

Remove the luggage under cover (A).

Fig 2: Locating Luggage Under Cover
Courtesy of HYUNDAI MOTOR AMERICA

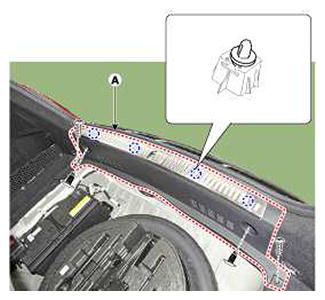

Loosen the mounting clips and screws, remove the rear transverse trim (A).

Fig 3: Removing Rear Transverse Trim With Mounting Clips And Screws
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
