Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
Remove the rear pillar trim.
(Refer to Interior Trim - "REAR WHEEL HOUSE TRIM ")
Remove the rear wheel house trim.
(Refer to Interior Trim - "REAR WHEEL HOUSE TRIM ")
Remove the rear console assembly (A).
(Refer to Floor Console - "REAR CONSOLE COVER ")

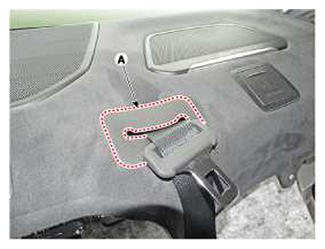

Using a screwdriver or remover, remove the center seat belt cover (A).

Fig 1: Locating Center Seat Belt Cover
Courtesy of HYUNDAI MOTOR AMERICA

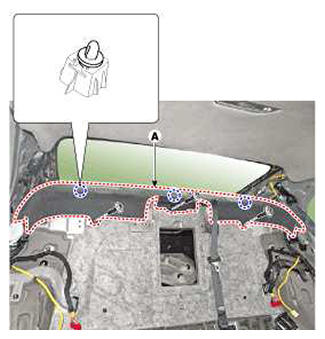

After loosening the mounting screws, remove the rear package tray trim (A).

Fig 2: Removing Rear Package Tray Trim With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
