Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the front pillar trim.
1. To remove the front pillar trim, the fastener remover (A) below must be used.

  Fig 1: Locating Fastener Remover
  Courtesy of HYUNDAI MOTOR AMERICA

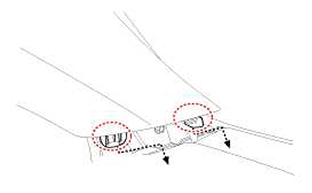

2. After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it
  NOTE:
  - Once the front pillar trim is removed, be sure to replace the clips with new ones
  Fig 2: Locating Front Pillar Trim Mounting Clip
  Courtesy of HYUNDAI MOTOR AMERICA
3. Remove the front pillar trim (A).

  Fig 3: Locating Front Pillar Trim And Mounting Clip
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:

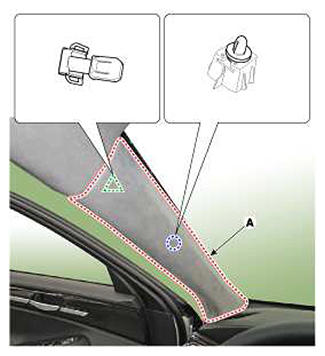

  - Front Pillar Trim Mounting Method
  Fig 4: Installing Front Pillar Trim
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:
  - Once the front pillar trim is removed, be sure to replace the clips with new ones.
  Fig 5: Locating Front Pillar Trim Mounting Clip
  Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips.
