Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver or remover, remove the front door step trim (A).

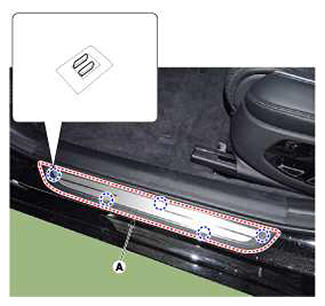

Fig 1: Locating Front Door Step Trim
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the rear door step trim (A).

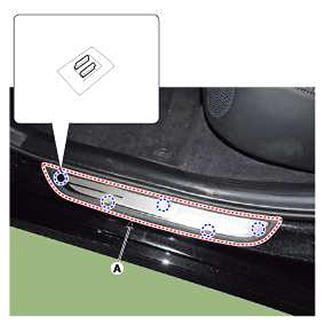

Fig 2: Locating Rear Door Step Trim
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
