Repair Procedures: Replacement
WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

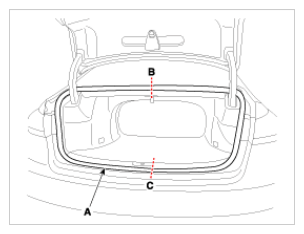

- Remove the trunk lid weatherstrip (A).
NOTE:
- Do not apply sealant to the body.
- Install in the reverse order of removal.
Information
- When installing the trunk lid weatherstrip, check the center-marking line (B)
- (B): Yellow center-marking line
- (C): Joint area
