Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the trunk lid trim.
(Refer to Trunk Lid - "TRUNK LID TRIM ")
Loosen the trunk lid key holder mounting bolts.

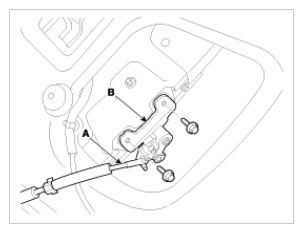

Remove the trunk lid key holder (B) and disconnect the trunk lid key holder cable (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)
Install in the reverse order of removal.
Information
- Make sure the trunk lid locks/unlocks and opens/closes properly.
- Replace any damaged clips.
